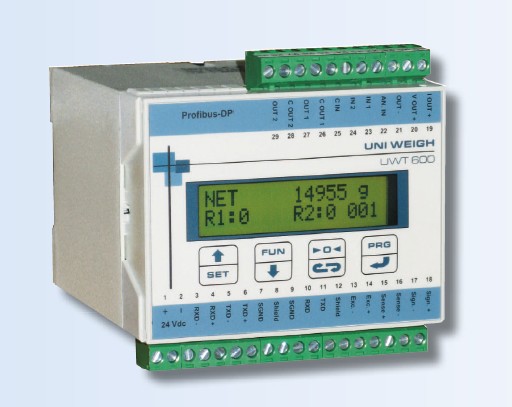

UWT 600
Weighing Instrumentation Weight Transmitters
· DIN Rail Mounting
· Output RS232 or RS422/RS485, ASCII Protocols or MODBUS RTU
· High performance and reliability
· Optional Protocols: PROFIBUS, DeviceNet, Ethernet
· Analog Output (option)
· Possibility to configure the tool with several options simultaneously
TECHNICAL CHARACTERISTICS UWT 600
|
Trasducer input voltage: |
5 V (max 6 load cells 350 Ohm) |
|
Measuring range: |
-1.5 ÷ +3.5 mV/V |
|
Input sensitivity: |
0.02 µV/ per count |
|
Linearity: |
±0.01% of R.O. |
|
Thermic drift: |
±0.001% R.O./°C |
|
Display: |
Alphanumeric backlit LCD, 2 lines and 16 scripts |
|
A/D Converter: |
24 bit |
|
Internal resolution: |
> 16.000.000 counts |
|
Visible resolution: |
600.000 divisions |
|
Divisions value (adjustable): |
x1, x2, x5 |
|
Set decimal: |
0.0 ; 0.00 ; 0.000 |
|
Filter: |
0.1 ÷ 25 Hz adjustable |
|
Keyboard: |
4 membrane keys |
|
Tool voltage: |
24 Vcc ±15% - 12 W |
|
Temperature range: |
-10 ÷ +50°C |
|
Storage temperature: |
-20 ÷ +70°C |
|
Logic output: |
2 relays (NA) - 115 V ca/30 V cc , 0.5 A |
|
Logic input: |
2 optoisolated 24 V cc PNP |
|
Serial door: |
COM1: RS232 COM2: RS422/RS485 |
|
Transmission distance: |
15m (RS232C), 1000m (RS422 and RS485) |
|
FIELDBUS protocol: |
PROFIBUS, DEVICENET, ETHERNET (opzionals) |
|
Protocol: |
ASCII, Modbus RTU |
|
Baud rate: |
1200 ÷ 115200 adjustable |
|
Analog optional output: |
16 Bit optoisolated - Tension: 0÷5/10V (R min10 K Ohm) Current: 0/4÷20mA (R max 300 Ohm) |
|
Regulatory compliance: |
EN61000, EN61000 for EMC; EN61010-1 for electrical safety |
|
Electrical connection: |
Screw terminals 5 mm |
|
Dimensions:
型號：
dat 400
dat 450
dat-s 400
dat 500
lc 100
mc 102
mcs 102
mc 302
mc s 302
uwt 600
uwt 600i i box 20004
|
100 x 75 x 110 mm (L x H x D)
| |
